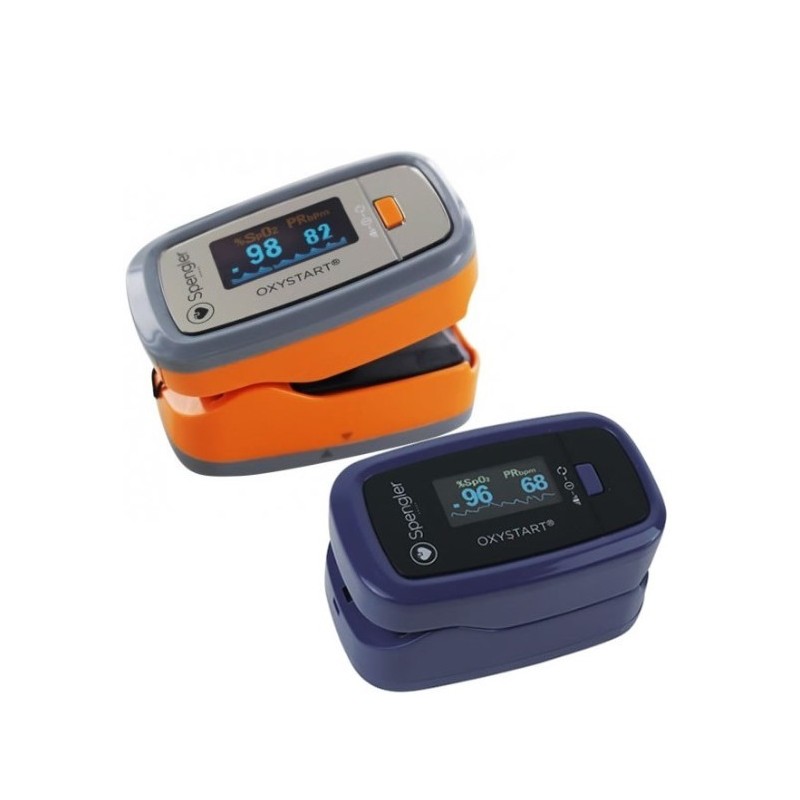

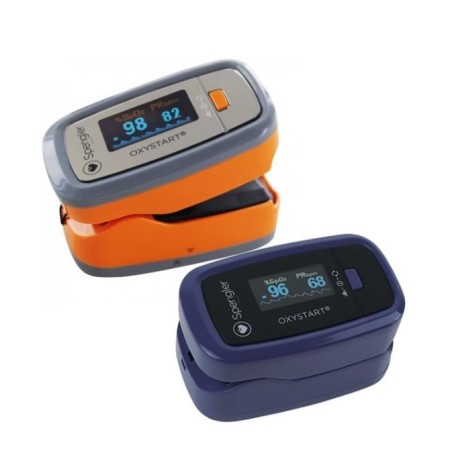

Spengler OXYSTART pulse oximeter

Features

Display mode: LED

SpO2

Measuring range: 0 to 100

resolution: 1

Accuracy: +/- 2% between 100% and 70%, below 70% not specified

Heart rate:

Measurement range: 30 to 250 bpm

Resolution of 1 bpm and accuracy of +/- 2 bpm or 2%.

Pulsatile intensity: columnar, waveform

Power supply: 2 x LR03 AAA 1.5 volt alkaline batteries

Dimensions of SPENGLER OXYSTART pulse oximeter:61 x 36 x 32 mm (L x W x H)

Weight 60 g with batteries

 Easy-to-read measurements thanks to the 2-colour, adjustable OLED screen

Simultaneous display in less than 10 seconds of :

-pulsed oxygen saturation (% SpO2),

-heart rate

-pulsatile signal intensity (bar graph),

-plethysmography curve.

Low battery indicator.

Customisable display: 6 display modes

5 brightness levels.

Instructions for use:

One button for 3 functions :

-when the device is switched off, press to switch on your Oxystart®,

-when the device is switched on, press briefly to change the display of your measurements,

-when the device is on, press and hold to change the brightness.

To switch off the Spengler OXYSTART® saturometer, simply remove your finger and wait 5 seconds.

The Oxystart® saturometer comes with 1 storage bag, 1 wrist strap, 2 AAA LR03 batteries and a user manual.

CE marking: European Directive EEC 93/42: Class IIb. The SPENGLER OXYSTART pulse oximeter meets the essential requirements for safety, health, hygiene and environmental protection.

Reference:

SPENGLER OXYSTART Pulse Oximeter: 221050

The product is guaranteed for 2 years under normal conditions of use

Mandatory information:

Name: SPENGLER Oxystart pulse oximeter

Purpose: Device for measuring heart rate and pulsed oxygen saturation

Manufacturer: Contec Medical Systems Co: Contec Medical Systems Co, LTD

Instructions : Carefully read the instructions in the leaflet or on the labelling.

Caution: If in doubt, consult a healthcare professional.

This medical device is a regulated health product and bears the CE mark.

Product class : DM Class IIb - CE 0123

Date of update of this product data sheet: 28/02/2025
