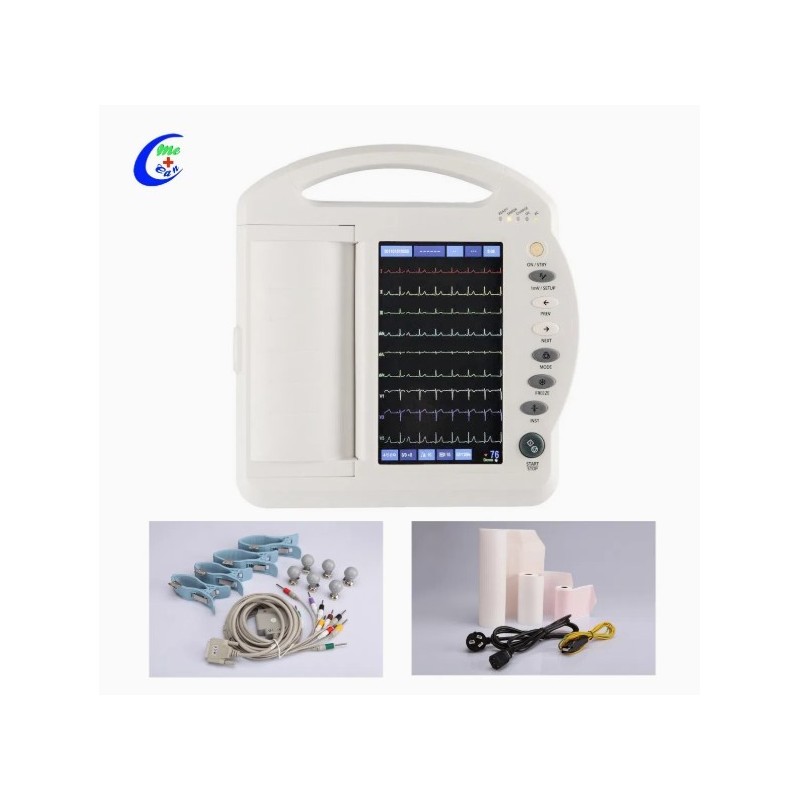

Electrocardiograph ECG Machine with Analyzer Interpreter

Model NO. MCS0174

Trademark Mecan

Certification MSDS

Leads 12 Standard or Cabrera Leads

Print Channels 12 Channels, Rhythem Lead Selectable

Printing Output 3+3 Channel; 6 Channel; 6+1 Channel; 12 Channel; 1

Size  43*40*23CM(1pc)/6.2kgs

Patient Current Leakage <10ua

Cmrr >100dB

Noise Level  ≤15μVp-p

Printing system Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s

Feature:
* 12 leads simultaneous acquisition and display on the ECG screen
* 10inch touch-screen LCD,1024* 600 pixels, support input of patient name,gender, age and hosptial name by touchscreen keyboard.
*12 channel printout on 216mm thermal paper
* Manual/ Auto mode/ Arrhythmia anylysis, auto interpretation results.
* Built-in rechargeable Li-poly battery with 2 hours continuous printing
* Built-in memory for 200 reports and support external 4G SD card
* IMAGE FREEZE for review and hardcopy of the required signals
*Digital filters elimination of muscles tremors and base line wandering
*Built-in RS232/USB interface
