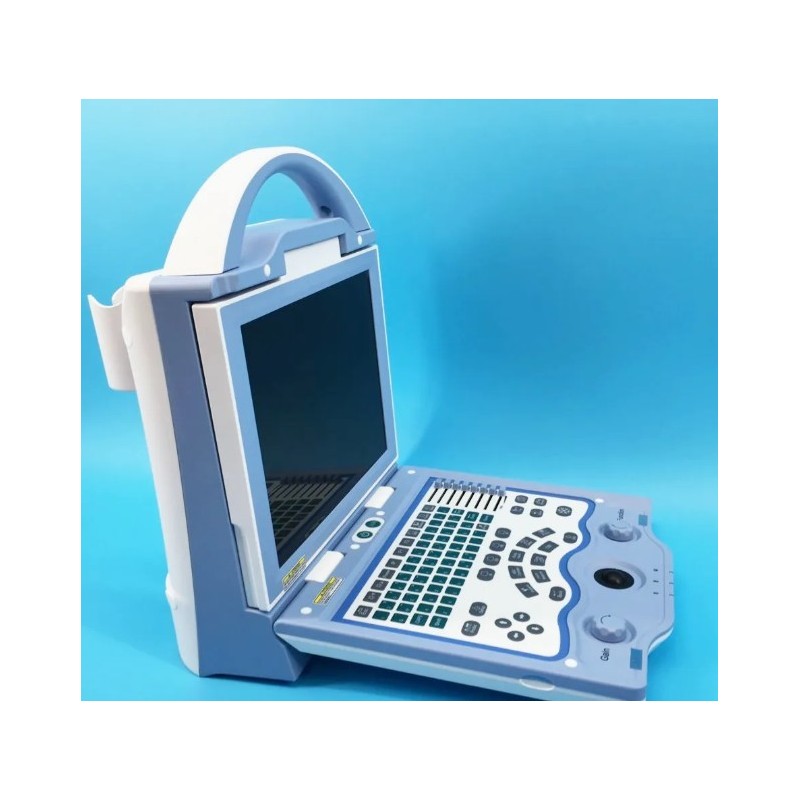

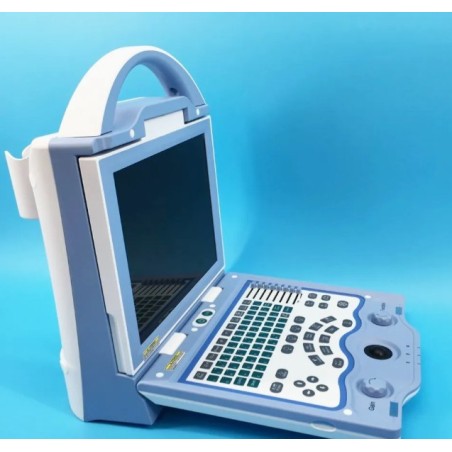

Mini Laptop - 2D Ultrasound Machine

Model NO. KX5600

Trademark kaixin

Certification CE

Application Abdomen, Gyn, Ob, Urology

Dimension 320*300*420mm

Net Weight 4.5kg

Tech Parameters:

• 10.4' high resolution color LED backlight display, with high contrast and wide viewing angle;
• Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
• Two probe sockets, auto-identify different optional probe;
• Body marks:total 64 kinds body marks indicating probe position;
• Display mode:B,2B,4B ,B/M,M ;
• Adjustable depth: 10 grades, max depth to 236mm;
• Gain:0~127dB;
• Contrast:27~90dB;
• Gray scale:256;
• 8 kinds pseudo colors;
• Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off
• Normal measurement; Cardio measurement; Gynecology measurement and analysis; OB measurement including; Urology measurement and analysis
• One-key store: concise and practical;
• One-key review:fast, practical image review function;
• One-key Print;
• One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
• Unique One-key-light keyboard function for black room use;
