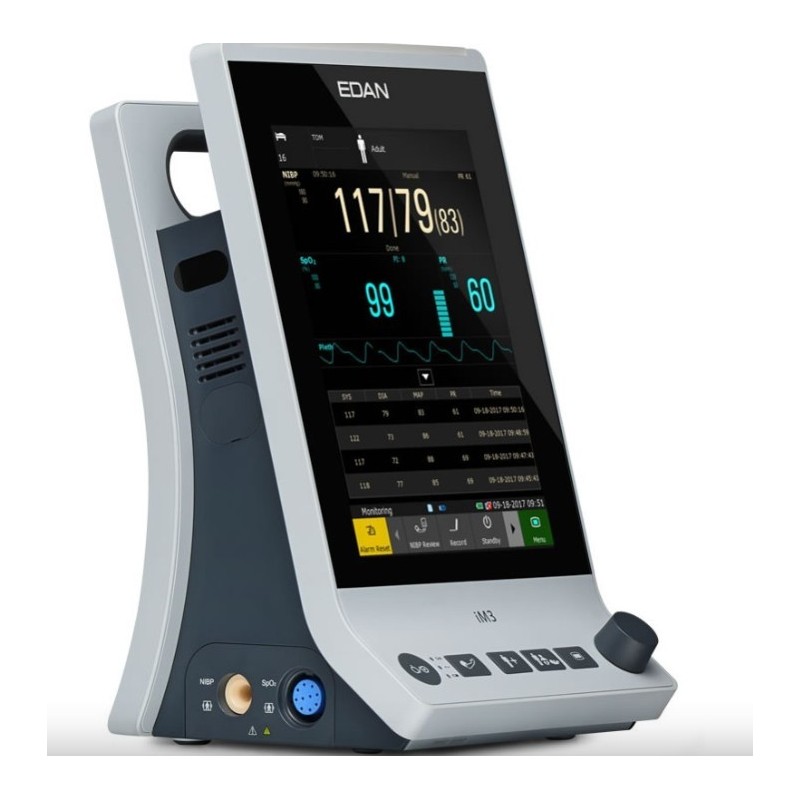

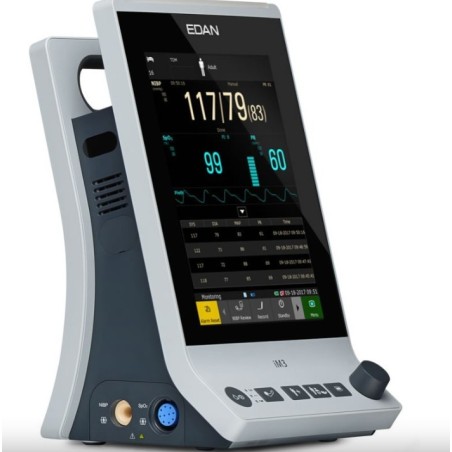

EDAN iM3 Touch Screen Vital Signs Monitor

Reference: MO112 : EDAN M3A vital signs monitor with NIBP + SpO2

Reference: MO112: EDAN M3A vital signs monitor with NIBP + SpO2 + Temperature

Certification  CE

Description

The EDAN iM3 vital signs monitor is part of the new generation of vital signs monitors. As such, the iM3 can be used for

continuous patient monitoring: MONITOR MODE Monitor mode is used to monitor and manage a single patient.

daily use during room visits: VISIT MODE Visit mode is used to measure parameters and manage data from several patients (up to 1,000 patients simultaneously).

In this case, only the vital functions required in real time are displayed, and no alarms will be seen or heard: QUICK CHECK MODE Quick Check mode is used for one-off measurements and for managing one-off data from several patients.

data from multiple patients.

The parameters monitored by the EDAN iM3 vital signs monitor are as follows:

NIBP using the oscillometric method,

SpO2,

PF (pulse rate),

fast TEMP/infrared TEMP. depending on the model chosen

The TEMP module is not designed for use on neonates.

Features:

The EDAN iM3 vital signs monitor features a large 8’ TFT-LCD touch screen (touch mode can be disabled).

Lightweight, ultra-slim and ergonomic, the iM3 monitor provides direct, intuitive access to key functions.

Built-in automatic alarm system for enhanced patient safety and historical trends

360° visual alarm indicator

Carrying handle, cable storage and accessories

OTG/Port interface for nurse call signals: allows the monitor to be connected to the hospital's nurse call system.

Large data storage capacity on internal memory

Bi-directional communication with MFM-CMS

LAN network connectivity USB connection

Automatic sleep mode for greater energy savings

Equipped with a rechargeable battery with a life of 3.5 hours

Battery charge status display

Dimensions (W x H x D): 159 mm × 262 mm × 166 mm

Weight: <2.5 kg without accessories

Monitor for adult, child and infant applications

ESH / IP / BHS / TÜV validated - CE approved

2-year warranty

The EDAN iM3 vital signs monitor is supplied with :

- EDAN adult SPO2 sensor

- an adult cuff

- a box of ear thermometer probe covers (for model EDA207 with temperature)

- a rechargeable battery

Available in 2 versions, the EDAN iM3 vital signs monitor measures SpO2, blood pressure and temperature for model EDA207.

Suitable for use on adults, children and infants, the EDAN iM3 monitor's SpO2 sensors and cuffs are available as accessories, see below.

You'll love its large touch screen for direct access to key functions, and its low weight of 2.5kg makes it easy to carry. The EDAN iM3 Vital Signs Monitor can also be fitted with an optional wheeled base.
